matrixRows_input.c File Reference

#include "c_common/matrixRows_input.h"
#include "c_types/column_info_t.h"
#include "c_types/matrix_cell_t.h"
#include "c_common/get_check_data.h"

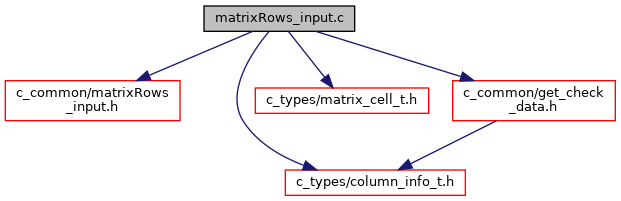

Include dependency graph for matrixRows_input.c:

Go to the source code of this file.

Functions
static void	fetch_plain (HeapTuple *tuple, TupleDesc *tupdesc, Column_info_t info[3], Matrix_cell_t *row)
static void	fetch_timestamps (HeapTuple *tuple, TupleDesc *tupdesc, Column_info_t info[3], Matrix_cell_t *row)
void	get_matrixRows (char *sql, Matrix_cell_t **rows, size_t *total_rows)
	Get the travel time matrix. More...
static void	get_matrixRows_general (char *sql, Column_info_t *info, const int kind, Matrix_cell_t **rows, size_t *total_rows)
	bigint start_vid, bigint end_vid, float agg_cost, More...
void	get_matrixRows_plain (char *sql, Matrix_cell_t **rows, size_t *total_rows)
	Get the travel time matrix with numerical types. More...

Function Documentation

fetch_plain()

static void fetch_plain ( HeapTuple *  tuple, TupleDesc *  tupdesc, Column_info_t  info[3], Matrix_cell_t *  row  )

static

Definition at line 62 of file matrixRows_input.c.

                            {
    row->from_vid = get_Id(tuple, tupdesc,  info[0], -1);
    row->to_vid = get_Id(tuple, tupdesc,  info[1], -1);
    row->cost = get_PositiveTInterval_plain(tuple, tupdesc, info[2], 0);
}

References Matrix_cell_t::cost, Matrix_cell_t::from_vid, get_Id(), get_PositiveTInterval_plain(), and Matrix_cell_t::to_vid.

Referenced by get_matrixRows_general().

fetch_timestamps()

static void fetch_timestamps ( HeapTuple *  tuple, TupleDesc *  tupdesc, Column_info_t  info[3], Matrix_cell_t *  row  )

static

Definition at line 73 of file matrixRows_input.c.

                            {
    row->from_vid = get_Id(tuple, tupdesc,  info[0], -1);
    row->to_vid = get_Id(tuple, tupdesc,  info[1], -1);
    row->cost = get_PositiveTInterval(tuple, tupdesc, info[2], 0);
}

References Matrix_cell_t::cost, Matrix_cell_t::from_vid, get_Id(), get_PositiveTInterval(), and Matrix_cell_t::to_vid.

Referenced by get_matrixRows_general().

get_matrixRows()

void get_matrixRows	(	char *	sql,
		Matrix_cell_t **	rows,
		size_t *	total_rows
	)

Get the travel time matrix.

Parameters

[in]	sql	SQL query that has the following columns: start_vid, end_vid, agg_cost
[out]	rows	C Container that holds all the matrix rows
[out]	total_rows	Total rows recieved

Definition at line 176 of file matrixRows_input.c.

                        {
  Column_info_t info[3];

  int i;
  for (i = 0; i < 3; ++i) {
    info[i].colNumber = -1;
    info[i].type = 0;
    info[i].strict = true;
    info[i].eType = ANY_INTEGER;
  }
  info[0].name = "start_vid";
  info[1].name = "end_vid";
  info[2].name = "travel_time";

  info[2].eType = INTERVAL;
  get_matrixRows_general(sql, info, 0, rows, total_rows);
}

References ANY_INTEGER, Column_info_t::colNumber, Column_info_t::eType, get_matrixRows_general(), INTERVAL, Column_info_t::name, Column_info_t::strict, and Column_info_t::type.

Referenced by process().

get_matrixRows_general()

static void get_matrixRows_general ( char *  sql, Column_info_t *  info, const int  kind, Matrix_cell_t **  rows, size_t *  total_rows  )

static

bigint start_vid, bigint end_vid, float agg_cost,

Definition at line 90 of file matrixRows_input.c.

                        {
#ifdef PROFILE
  clock_t start_t = clock();
  PGR_DBG("%s", sql);
#endif

  const int tuple_limit = 1000000;
  size_t total_tuples = 0;
  const int column_count = 3;

  void *SPIplan;
  SPIplan = pgr_SPI_prepare(sql);

  Portal SPIportal;
  SPIportal = pgr_SPI_cursor_open(SPIplan);


  bool moredata = true;
  (*total_rows) = total_tuples;

  while (moredata == true) {
    SPI_cursor_fetch(SPIportal, true, tuple_limit);
    if (total_tuples == 0)
      pgr_fetch_column_info(info, column_count);

    size_t ntuples = SPI_processed;
    total_tuples += ntuples;

    if (ntuples > 0) {
      if ((*rows) == NULL)
        (*rows) = (Matrix_cell_t *)palloc0(
            total_tuples * sizeof(Matrix_cell_t));
      else
        (*rows) = (Matrix_cell_t *)repalloc(
            (*rows), total_tuples * sizeof(Matrix_cell_t));

      if ((*rows) == NULL) {
        elog(ERROR, "Out of memory");
      }

      SPITupleTable *tuptable = SPI_tuptable;
      TupleDesc tupdesc = SPI_tuptable->tupdesc;

      size_t t;
      for (t = 0; t < ntuples; t++) {
        HeapTuple tuple = tuptable->vals[t];
        switch (kind) {
          case 0 : fetch_timestamps(&tuple, &tupdesc, info,
                       &(*rows)[total_tuples - ntuples + t]);
                   break;
          case 1 : fetch_plain(&tuple, &tupdesc, info,
                       &(*rows)[total_tuples - ntuples + t]);
                   break;
        }
      }
      SPI_freetuptable(tuptable);
    } else {
      moredata = false;
    }
  }

  SPI_cursor_close(SPIportal);


  if (total_tuples == 0) {
    (*total_rows) = 0;
    return;
  }

  (*total_rows) = total_tuples;
#ifdef PROFILE
  time_msg(" reading time matrix", start_t, clock());
#endif
}

References fetch_plain(), fetch_timestamps(), PGR_DBG, pgr_fetch_column_info(), pgr_SPI_cursor_open(), pgr_SPI_prepare(), and time_msg().

Referenced by get_matrixRows(), and get_matrixRows_plain().

get_matrixRows_plain()

void get_matrixRows_plain	(	char *	sql,
		Matrix_cell_t **	rows,
		size_t *	total_rows
	)

Get the travel time matrix with numerical types.

Parameters

[in]	sql	SQL query that has the following columns: start_vid, end_vid, agg_cost
[out]	rows	C Container that holds all the matrix rows
[out]	total_rows	Total rows recieved

Definition at line 203 of file matrixRows_input.c.

                        {
  Column_info_t info[3];

  int i;
  for (i = 0; i < 3; ++i) {
    info[i].colNumber = -1;
    info[i].type = 0;
    info[i].strict = true;
    info[i].eType = ANY_INTEGER;
  }
  info[0].name = "start_vid";
  info[1].name = "end_vid";
  info[2].name = "agg_cost";

  info[2].eType = ANY_NUMERICAL;
  get_matrixRows_general(sql, info, 1, rows, total_rows);
}

References ANY_INTEGER, ANY_NUMERICAL, Column_info_t::colNumber, Column_info_t::eType, get_matrixRows_general(), Column_info_t::name, Column_info_t::strict, and Column_info_t::type.

Referenced by process().
