vrprouting::problem::Solution Class Reference

#include "solution.h"

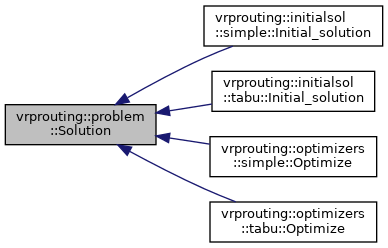

Inheritance diagram for vrprouting::problem::Solution:

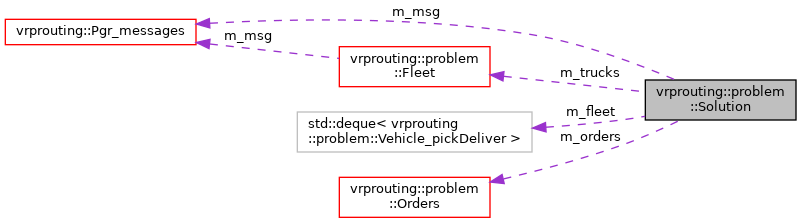

Collaboration diagram for vrprouting::problem::Solution:

Public Member Functions
	Solution ()=delete
	constructor More...
	Solution (const Solution &sol)=default
	copy constructor More...
template<typename P >
	Solution (P *p_problem)
	constructor More...
std::tuple< int, int, size_t, TInterval, TInterval, TInterval >	cost () const
	Get all statistics in one cycle. More...
std::string	cost_str () const
int	cvTot () const
	Total number of capacity constraint violations of the solution. More...
TInterval	duration () const
	Total duration of the solution. More...
const std::deque< Vehicle_pickDeliver > &	fleet () const
	Get the current fleet solution. More...
std::vector< Solution_rt >	get_postgres_result () const
	get solution like postgres needs it More...
std::vector< Short_vehicle >	get_stops () const
	get solution like postgres needs it More...
bool	is_feasible () const
	is the solution feasible? More...
Pgr_messages &	msg ()
double	objective () const
	Get the value of the objective function. More...
bool	operator< (const Solution &) const
Solution &	operator= (const Solution &sol)=default
	copy assignment More...
const Orders &	orders () const
std::string	tau (const std::string &title="Tau") const
	writing the solution in compact form into a string More...
TInterval	total_service_time () const
	Total service time of the solution. More...
TInterval	total_travel_time () const
	Total travel time of the solution. More...
int	twvTot () const
	Total number of time windows constraint violations of the solution. More...
Fleet &	vehicles ()
TInterval	wait_time () const
	Total waiting time of the solution. More...

Protected Attributes
std::deque< Vehicle_pickDeliver >	m_fleet
	The current solution. More...
Pgr_messages	m_msg
Orders	m_orders
	the problem info More...
Fleet	m_trucks

Friends
std::ostream &	operator<< (std::ostream &log, const Solution &solution)
	printing function More...

Detailed Description

Definition at line 50 of file solution.h.

Constructor & Destructor Documentation

Solution() [1/3]

vrprouting::problem::Solution::Solution ( )

delete

constructor

Solution() [2/3]

template<typename P >

vrprouting::problem::Solution::Solution ( P *  p_problem )

inlineexplicit

constructor

Definition at line 57 of file solution.h.

                                      :
        m_orders(p_problem->orders()),
        m_trucks(p_problem->vehicles()),
        m_msg(p_problem->msg) { }

Solution() [3/3]

vrprouting::problem::Solution::Solution ( const Solution &  sol )

default

copy constructor

Member Function Documentation

cost()

std::tuple< int, int, size_t, TInterval, TInterval, TInterval > Solution::cost

(

)

const

Get all statistics in one cycle.

Returns

totals of

idx	variable
0	twv
1	cv
2	fleet size
3	waiting time
4	duration
5	travel time

std::get<idx>

Definition at line 218 of file solution.cpp.

                     {
  TInterval total_duration(0);
  TInterval total_wait_time(0);
  TInterval total_tt(0);
  int total_twv(0);
  int total_cv(0);
  /*
   * Cycle the fleet
   */
  for (const auto& v : m_fleet) {
    total_duration += v.duration();
    total_wait_time += v.total_wait_time();
    total_twv += v.twvTot();
    total_cv += v.cvTot();
    total_tt += v.total_travel_time();
  }
  /*
   * build the tuple
   */
  return std::make_tuple(
      total_twv, total_cv, m_fleet.size(),
      total_wait_time, total_duration,
      total_tt);
}

References m_fleet.

Referenced by cost_str(), and operator<().

cost_str()

std::string Solution::cost_str

(

)

const

Returns

The costs in one string

Definition at line 246 of file solution.cpp.

                         {
  /*
   * get the cost
   */
  auto s_cost(cost());
  std::ostringstream log;

  /*
   * Build the string
   */
  log << std::fixed << std::setprecision(4)
    << "twv=" << std::get<0>(s_cost)
    << " cv=" << std::get<1>(s_cost)
    << " wait=" << std::get<3>(s_cost)
    << " duration=" << std::get<4>(s_cost)
    << " tt=" << std::get<5>(s_cost);

  return log.str();
}

References cost().

Referenced by tau().

cvTot()

int Solution::cvTot

(

)

const

Total number of capacity constraint violations of the solution.

Returns

Total number of capacity violations The total capacity violations of the solution is the sum of the capacity violations of all vehicles

Definition at line 196 of file solution.cpp.

                      {
  return std::accumulate(begin(m_fleet), end(m_fleet), 0,
      [](int i, const Vehicle_pickDeliver& v) {return v.cvTot() + i;});
}

References vrprouting::problem::Vehicle::cvTot(), and m_fleet.

Referenced by get_postgres_result().

duration()

TInterval Solution::duration

(

)

const

Total duration of the solution.

Returns

the solution's duration

The solution duration is the sum of the durations of all vehicles

Definition at line 140 of file solution.cpp.

                         {
  return std::accumulate(begin(m_fleet), end(m_fleet), static_cast<TInterval>(0),
      [](TInterval i, const Vehicle_pickDeliver& v) {return v.duration() + i;});
}

References vrprouting::problem::Vehicle::duration(), and m_fleet.

Referenced by get_postgres_result(), vrprouting::optimizers::simple::Optimize::save_if_best(), and vrprouting::optimizers::simple::Optimize::swap_worse().

fleet()

const std::deque<Vehicle_pickDeliver>& vrprouting::problem::Solution::fleet ( ) const

inline

Get the current fleet solution.

Definition at line 107 of file solution.h.

{return m_fleet;}

References m_fleet.

Referenced by vrprouting::optimizers::tabu::Optimize::intensify(), and vrprouting::optimizers::tabu::Optimize::Optimize().

get_postgres_result()

std::vector< Solution_rt > Solution::get_postgres_result

(

)

const

get solution like postgres needs it

Returns

container for postgres

Definition at line 61 of file solution.cpp.

                                    {
  std::vector<Solution_rt> result;

  /* postgres numbering starts with 1 */
  int i(1);

  for (auto v : m_fleet) {
    v.evaluate(0);
    auto data = v.get_postgres_result(i);
    /*
     * Results adjusted for the depot and the first stop
     * So the vehicle waits on the depot not on the first stop
     */
    data[1].arrivalTime = data[1].operationTime;
    data[0].waitDuration = data[1].waitDuration;
    data[1].waitDuration = 0;
    data[0].departureTime = data[0].arrivalTime + data[0].waitDuration;


    result.insert(result.end(), data.begin(), data.end());
    ++i;
  }

  Solution_rt aggregates = {
    /*
     * Vehicle id = -2 indicates its an aggregate row
     *
     * (twv, cv, fleet, wait, duration)
     */
    -2,  // summary row on vehicle_number
    twvTot(),  // on vehicle_id
    cvTot(),   // on vehicle_seq
    -1,  // on order_id
    -1,  // on stop_id
    -2,  // on stop_type (gets increased later by one so it gets -1)
    -1,  // not accounting total loads
    static_cast<int64_t>(total_travel_time()),
    -1,  // not accounting arrival_travel_time
    static_cast<int64_t>(wait_time()),
    -1,  // not accounting operation time
    static_cast<int64_t>(total_service_time()),
    static_cast<int64_t>(duration()),
    cvTot(),
    twvTot()
  };
  result.push_back(aggregates);

  return result;
}

References cvTot(), duration(), m_fleet, total_service_time(), total_travel_time(), twvTot(), and wait_time().

get_stops()

std::vector< Short_vehicle > Solution::get_stops

(

)

const

get solution like postgres needs it

Returns

container for postgres

Definition at line 49 of file solution.cpp.

                          {
  std::vector<Short_vehicle> result;
  for (auto v : m_fleet) {
    result.push_back(Short_vehicle{v.id(), v.get_stops()});
  }
  return result;
}

References Short_vehicle::id, and m_fleet.

is_feasible()

bool Solution::is_feasible

(

)

const

is the solution feasible?

The solution is feasible when all vehicles are feasible.

Returns

true when all vehicles in solution are feasible

Definition at line 129 of file solution.cpp.

                            {
  return std::find_if(m_fleet.begin(), m_fleet.end(),
      [] (const Vehicle_pickDeliver& v) -> bool {return !v.is_feasible();}) == m_fleet.end();
}

References m_fleet.

Referenced by vrprouting::optimizers::simple::Optimize::decrease_truck(), vrprouting::initialsol::simple::Initial_solution::do_while_feasible(), vrprouting::initialsol::simple::Initial_solution::do_while_foo(), vrprouting::initialsol::tabu::Initial_solution::Initial_solution(), vrprouting::initialsol::tabu::Initial_solution::process_given_solution_from_user(), and vrprouting::initialsol::tabu::Initial_solution::process_unassigned().

msg()

Pgr_messages& vrprouting::problem::Solution::msg ( )

inline

Definition at line 119 of file solution.h.

{return m_msg;}

References m_msg.

Referenced by vrprouting::initialsol::simple::Initial_solution::do_while_foo(), vrprouting::optimizers::simple::Optimize::inter_swap(), vrprouting::optimizers::tabu::Optimize::move_2_real(), vrprouting::initialsol::simple::Initial_solution::one_truck_all_orders(), vrprouting::optimizers::simple::Optimize::Optimize(), vrprouting::optimizers::tabu::Optimize::Optimize(), vrprouting::initialsol::tabu::Initial_solution::process_unassigned(), vrprouting::optimizers::simple::Optimize::save_if_best(), and vrprouting::optimizers::tabu::Optimize::tabu_search().

objective()

double vrprouting::problem::Solution::objective ( ) const

inline

Get the value of the objective function.

Definition at line 110 of file solution.h.

{return static_cast<double>(total_travel_time());}

References total_travel_time().

Referenced by vrprouting::optimizers::tabu::Optimize::move_2_real(), vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), vrprouting::optimizers::tabu::Optimize::swap_between_routes(), and vrprouting::optimizers::tabu::Optimize::tabu_search().

operator<()

bool Solution::operator<

(

const Solution &

s_rhs

)

const

Definition at line 267 of file solution.cpp.

                                               {
  auto lhs(cost());
  auto rhs(s_rhs.cost());

  /*
   * time window violations
   */
  if (std::get<0>(lhs) < std::get<0>(rhs))
    return true;
  if (std::get<0>(lhs) > std::get<0>(rhs))
    return false;

  /*
   * capacity violations
   */
  if (std::get<1>(lhs) < std::get<1>(rhs))
    return true;
  if (std::get<1>(lhs) > std::get<1>(rhs))
    return false;

  /*
   * fleet size
   */
  if (std::get<2>(lhs) < std::get<2>(rhs))
    return true;
  if (std::get<2>(lhs) > std::get<2>(rhs))
    return false;

  /*
   * waiting time
   */
  if (std::get<3>(lhs) < std::get<3>(rhs))
    return true;
  if (std::get<3>(lhs) > std::get<3>(rhs))
    return false;

  /*
   * duration
   */
  if (std::get<4>(lhs) < std::get<4>(rhs))
    return true;
  if (std::get<4>(lhs) > std::get<4>(rhs))
    return false;

  return false;
}

References cost().

operator=()

Solution& vrprouting::problem::Solution::operator= ( const Solution &  sol )

default

copy assignment

orders()

const Orders& vrprouting::problem::Solution::orders ( ) const

inline

Definition at line 120 of file solution.h.

{return m_orders;}

References m_orders.

Referenced by vrprouting::optimizers::simple::Optimize::decrease_truck(), vrprouting::optimizers::tabu::Optimize::diversify(), vrprouting::optimizers::tabu::Optimize::move_2_real(), vrprouting::initialsol::tabu::Initial_solution::process_given_solution_from_user(), vrprouting::initialsol::tabu::Initial_solution::process_unassigned(), vrprouting::optimizers::tabu::Optimize::set_tabu_list_length(), vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), and vrprouting::optimizers::tabu::Optimize::swap_between_routes().

tau()

std::string Solution::tau

(

const std::string &

title = "Tau"

)

const

writing the solution in compact form into a string

Parameters

[in]

title

Title to Use for the tau

Returns

The solution in one compacted string

Definition at line 116 of file solution.cpp.

                                          {
  std::string str {"\n" + title + ": " + '\n'};
  for (const auto& v : m_fleet) str += ("\n" + v.tau());
  str += "\n" + cost_str() + "\n";
  return str;
}

References cost_str(), and m_fleet.

Referenced by vrprouting::optimizers::simple::Optimize::inter_swap(), vrprouting::optimizers::simple::Optimize::Optimize(), and vrprouting::optimizers::tabu::Optimize::Optimize().

total_service_time()

TInterval Solution::total_service_time

(

)

const

Total service time of the solution.

Returns

the total service time of the solution

The total service time of the solution is the sum of the service times of all vehicles

Definition at line 174 of file solution.cpp.

                                   {
  return std::accumulate(begin(m_fleet), end(m_fleet), static_cast<TInterval>(0),
      [](TInterval i, const Vehicle_pickDeliver& v) {return v.total_service_time() + i;});
}

References m_fleet, and vrprouting::problem::Vehicle::total_service_time().

Referenced by get_postgres_result().

total_travel_time()

TInterval Solution::total_travel_time

(

)

const

Total travel time of the solution.

Returns

the total waiting time

The total travel time of the solution is the sum of the travel times of all vehicles

Definition at line 162 of file solution.cpp.

                                  {
  return std::accumulate(begin(m_fleet), end(m_fleet), static_cast<TInterval>(0),
      [](TInterval i, const Vehicle_pickDeliver& v) {return v.total_travel_time() + i;});
}

References m_fleet, and vrprouting::problem::Vehicle::total_travel_time().

Referenced by get_postgres_result(), and objective().

twvTot()

int Solution::twvTot

(

)

const

Total number of time windows constraint violations of the solution.

Returns

the total number of time window violations

The total time window violations of the solution is the sum of the time window violations of all vehicles

Definition at line 185 of file solution.cpp.

                       {
  return std::accumulate(begin(m_fleet), end(m_fleet), 0,
      [](int i, const Vehicle_pickDeliver& v) {return v.twvTot() + i;});
}

References m_fleet, and vrprouting::problem::Vehicle::twvTot().

Referenced by get_postgres_result().

vehicles()

Fleet& vrprouting::problem::Solution::vehicles ( )

inline

Definition at line 121 of file solution.h.

{return m_trucks;}

References m_trucks.

Referenced by vrprouting::initialsol::simple::Initial_solution::do_while_foo(), vrprouting::initialsol::tabu::Initial_solution::Initial_solution(), vrprouting::initialsol::simple::Initial_solution::one_truck_all_orders(), vrprouting::initialsol::tabu::Initial_solution::process_given_solution_from_user(), and vrprouting::initialsol::tabu::Initial_solution::process_unassigned().

wait_time()

TInterval Solution::wait_time

(

)

const

Total waiting time of the solution.

Returns

the total waiting time

The total waiting time of the solution is the sum of the waiting time of all vehicles

Definition at line 151 of file solution.cpp.

                          {
  return std::accumulate(begin(m_fleet), end(m_fleet), static_cast<TInterval>(0),
      [](TInterval i, const Vehicle_pickDeliver& v) {return v.total_wait_time() + i;});
}

References m_fleet, and vrprouting::problem::Vehicle::total_wait_time().

Referenced by get_postgres_result().

Friends And Related Function Documentation

operator<<

std::ostream& operator<< ( std::ostream &  log, const Solution &  solution  )

friend

printing function

Definition at line 76 of file solution.h.

                                                                              {
      for (const auto& vehicle : solution.m_fleet) log << vehicle;
      log << "\n SOLUTION:\n\n " << solution.tau();
      return log;
    }

Member Data Documentation

m_fleet

std::deque<Vehicle_pickDeliver> vrprouting::problem::Solution::m_fleet

protected

The current solution.

Definition at line 125 of file solution.h.

Referenced by cost(), cvTot(), vrprouting::optimizers::simple::Optimize::decrease_truck(), vrprouting::optimizers::simple::Optimize::delete_empty_truck(), vrprouting::optimizers::tabu::Optimize::diversify(), vrprouting::initialsol::simple::Initial_solution::do_while_foo(), duration(), fleet(), get_postgres_result(), get_stops(), vrprouting::initialsol::tabu::Initial_solution::Initial_solution(), vrprouting::optimizers::tabu::Optimize::intensify(), vrprouting::optimizers::simple::Optimize::inter_swap(), is_feasible(), vrprouting::optimizers::tabu::Optimize::move_2_real(), vrprouting::initialsol::simple::Initial_solution::one_truck_all_orders(), vrprouting::optimizers::simple::Optimize::Optimize(), vrprouting::optimizers::tabu::Optimize::Optimize(), vrprouting::initialsol::tabu::Initial_solution::process_given_solution_from_user(), vrprouting::initialsol::tabu::Initial_solution::process_unassigned(), vrprouting::optimizers::simple::Optimize::save_if_best(), vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), vrprouting::optimizers::simple::Optimize::sort_by_duration(), vrprouting::optimizers::simple::Optimize::sort_by_id(), vrprouting::optimizers::simple::Optimize::sort_by_size(), vrprouting::optimizers::tabu::Optimize::sort_by_size(), vrprouting::optimizers::simple::Optimize::sort_for_move(), vrprouting::optimizers::tabu::Optimize::swap_between_routes(), vrprouting::optimizers::tabu::Optimize::tabu_search(), tau(), total_service_time(), total_travel_time(), twvTot(), and wait_time().

m_msg

Pgr_messages vrprouting::problem::Solution::m_msg

protected

Definition at line 130 of file solution.h.

Referenced by msg().

m_orders

Orders vrprouting::problem::Solution::m_orders

protected

the problem info

Definition at line 128 of file solution.h.

Referenced by vrprouting::initialsol::simple::Initial_solution::do_while_feasible(), and orders().

m_trucks

Fleet vrprouting::problem::Solution::m_trucks

protected

Definition at line 129 of file solution.h.

Referenced by vehicles().

---

The documentation for this class was generated from the following files:

• solution.h
• solution.cpp
