The TabuList class defines the tabu list to be used in optimization. More...

#include "tabu_list.h"

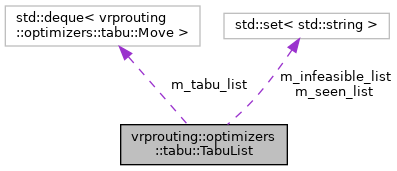

Collaboration diagram for vrprouting::optimizers::tabu::TabuList:

Public Types
typedef std::deque< Move >::const_iterator	const_iterator
	iterator type that does not allows modification More...

typedef std::deque< Move >::iterator	iterator
	iterator type that allows modification More...

Public Member Functions
void	add (const Move &m)
	Make a move "tabu" by adding it to the tabu list. More...

void	add_infeasible (const std::string &candidate)
	Adds a move candidate to the infeasible list. More...

void	add_seen (const std::string &candidate)
	Adds a move candidate to the seen list. More...

const_iterator	begin () const
	Constant iterator pointing to the first element of the tabu list. More...

void	clear ()
	removes all moves from the tabu list More...

const_iterator	end () const
	Constant iteratori pointing to the last element of the tabu list. More...

bool	has_infeasible (const std::string &candidate)
	Checks to see if a move candidate is infeasible (in the infeasible list) More...

bool	has_move (const problem::Vehicle_pickDeliver &, const problem::Vehicle_pickDeliver &, const problem::Order &from_order, double obj1, double obj2) const
	Checks to see if a "move" move is "tabu" (in the tabu list) More...

bool	has_seen (const std::string &candidate)
	Checks to see if a move candidate has already been done before (in the seen list) More...

bool	has_swap (const problem::Vehicle_pickDeliver &, const problem::Vehicle_pickDeliver &, const problem::Order &, const problem::Order &, double obj1, double obj2) const
	Checks to see if a "swap" move is "tabu" (in the tabu list) More...

bool	is_empty () const
	returns true if the tabu list is empty More...

size_t	max_length () const
	returns the maximum length (tabu_length) of the tabu list More...

void	set_max_length (size_t length)
	sets the maximum length (tabu_length) of the tabu list More...

size_t	size () const
	returns the current length (number of moves) in the tabu list More...

Private Member Functions
bool	has (const Move &) const
	Checks to see if a (general) move is "tabu" (in the tabu list) More...

Private Attributes
std::set< std::string >	m_infeasible_list
	the infeasible list More...

size_t	m_max_length
	the maximum length (tabu_length) of the tabu list More...

std::set< std::string >	m_seen_list
	the seen list More...

std::deque< Move >	m_tabu_list
	the tabu list More...

Friends
std::ostream &	operator<< (std::ostream &, const TabuList &)
	priting function More...

Detailed Description

The TabuList class defines the tabu list to be used in optimization.

Definition at line 45 of file tabu_list.h.

Member Typedef Documentation

◆ const_iterator

typedef std::deque<Move>::const_iterator vrprouting::optimizers::tabu::TabuList::const_iterator

iterator type that does not allows modification

Definition at line 51 of file tabu_list.h.

◆ iterator

typedef std::deque<Move>::iterator vrprouting::optimizers::tabu::TabuList::iterator

iterator type that allows modification

Definition at line 48 of file tabu_list.h.

Member Function Documentation

◆ add()

void vrprouting::optimizers::tabu::TabuList::add ( const Move & m )

Make a move "tabu" by adding it to the tabu list.

Parameters

[in] m the move

Definition at line 42 of file tabu_list.cpp.

                                 {
     if (has(m))  return;
     while (size() >= max_length()) m_tabu_list.pop_front();
     m_tabu_list.push_back(m);
 }

References has(), m_tabu_list, max_length(), and size().

Referenced by vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), and vrprouting::optimizers::tabu::Optimize::swap_between_routes().

◆ add_infeasible()

void vrprouting::optimizers::tabu::TabuList::add_infeasible ( const std::string & candidate )

Adds a move candidate to the infeasible list.

Definition at line 154 of file tabu_list.cpp.

                                                         {
     m_infeasible_list.insert(candidate);
 }

References m_infeasible_list.

Referenced by vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), and vrprouting::optimizers::tabu::Optimize::swap_between_routes().

◆ add_seen()

void vrprouting::optimizers::tabu::TabuList::add_seen ( const std::string & candidate )

Adds a move candidate to the seen list.

Definition at line 162 of file tabu_list.cpp.

                                                   {
     m_seen_list.insert(candidate);
 }

References m_seen_list.

Referenced by vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), and vrprouting::optimizers::tabu::Optimize::swap_between_routes().

◆ begin()

const_iterator vrprouting::optimizers::tabu::TabuList::begin ( ) const

inline

Constant iterator pointing to the first element of the tabu list.

Definition at line 86 of file tabu_list.h.

86 {return m_tabu_list.begin();}

References m_tabu_list.

◆ clear()

void vrprouting::optimizers::tabu::TabuList::clear ( )

removes all moves from the tabu list

Definition at line 50 of file tabu_list.cpp.

                      {
     m_tabu_list.clear();
 }

References m_tabu_list.

Referenced by vrprouting::optimizers::tabu::Optimize::move_2_real().

◆ end()

const_iterator vrprouting::optimizers::tabu::TabuList::end ( ) const

inline

Constant iteratori pointing to the last element of the tabu list.

Definition at line 89 of file tabu_list.h.

89 {return m_tabu_list.end();}

References m_tabu_list.

◆ has()

bool vrprouting::optimizers::tabu::TabuList::has ( const Move & m ) const

private

Checks to see if a (general) move is "tabu" (in the tabu list)

Parameters

[in] m move searched for

Returns: true when the move was found in the tabu list; false when the move was not found in the tabu list

Definition at line 59 of file tabu_list.cpp.

                                       {
     return std::find(m_tabu_list.begin(), m_tabu_list.end(), m) != m_tabu_list.end();
 }

References m_tabu_list.

Referenced by add(), has_move(), and has_swap().

◆ has_infeasible()

bool vrprouting::optimizers::tabu::TabuList::has_infeasible ( const std::string & candidate )

Checks to see if a move candidate is infeasible (in the infeasible list)

Definition at line 150 of file tabu_list.cpp.

                                                         {
     return (m_infeasible_list.find(candidate) != m_infeasible_list.end());
 }

References m_infeasible_list.

Referenced by vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), and vrprouting::optimizers::tabu::Optimize::swap_between_routes().

◆ has_move()

bool vrprouting::optimizers::tabu::TabuList::has_move	(	const problem::Vehicle_pickDeliver &	from_vehicle,
		const problem::Vehicle_pickDeliver &	to_vehicle,
		const problem::Order &	order,
		double	obj1,
		double	obj2
	)		const

Checks to see if a "move" move is "tabu" (in the tabu list)

Parameters

[in]	from_vehicle	First vehicle of the move
[in]	to_vehicle	Second vehicle of the move
[in]	order	order involved on the move
[in]	obj1
[in]	obj2

Returns: true when the move was found in the tabu list; false when the move was not found in the tabu list

Definition at line 73 of file tabu_list.cpp.

                                                                                    {
     return has({from_vehicle, to_vehicle, order, obj1, obj2}) ||
             has({to_vehicle, from_vehicle, order, obj1, obj2});
 }

References has().

Referenced by vrprouting::optimizers::tabu::Optimize::single_pair_insertion().

◆ has_seen()

bool vrprouting::optimizers::tabu::TabuList::has_seen ( const std::string & candidate )

Checks to see if a move candidate has already been done before (in the seen list)

Definition at line 158 of file tabu_list.cpp.

                                                   {
     return (m_seen_list.find(candidate) != m_seen_list.end());
 }

References m_seen_list.

Referenced by vrprouting::optimizers::tabu::Optimize::single_pair_insertion(), and vrprouting::optimizers::tabu::Optimize::swap_between_routes().

◆ has_swap()

bool vrprouting::optimizers::tabu::TabuList::has_swap	(	const problem::Vehicle_pickDeliver &	from_vehicle,
		const problem::Vehicle_pickDeliver &	to_vehicle,
		const problem::Order &	from_order,
		const problem::Order &	to_order,
		double	obj1,
		double	obj2
	)		const

Checks to see if a "swap" move is "tabu" (in the tabu list)

Parameters

[in]	from_vehicle	First vehicle of the move
[in]	to_vehicle	Second vehicle of the move
[in]	from_order	involved on the swap move
[in]	to_order	involved on the swap move
[in]	obj1
[in]	obj2

Returns: true when the move was found in the tabu list; false when the move was not found in the tabu list

Definition at line 91 of file tabu_list.cpp.

                                                                                       {
     return has({from_vehicle, to_vehicle, from_order, to_order, obj1, obj2}) ||
             has({from_vehicle, to_vehicle, to_order, from_order, obj1, obj2}) ||
             has({to_vehicle, from_vehicle, from_order, to_order, obj1, obj2}) ||
             has({to_vehicle, from_vehicle, to_order, from_order, obj1, obj2});
 }

References has().

Referenced by vrprouting::optimizers::tabu::Optimize::swap_between_routes().

◆ is_empty()

bool vrprouting::optimizers::tabu::TabuList::is_empty ( ) const

returns true if the tabu list is empty

Returns: true when the list is empty; false when the list is not empty

Definition at line 108 of file tabu_list.cpp.

                               {
     return m_tabu_list.empty();
 }

References m_tabu_list.

◆ max_length()

size_t vrprouting::optimizers::tabu::TabuList::max_length ( ) const

returns the maximum length (tabu_length) of the tabu list

Returns: the maximum possible number of moves on the tabu list

Definition at line 124 of file tabu_list.cpp.

                                   {
     return m_max_length;
 }

References m_max_length.

Referenced by add().

◆ set_max_length()

void vrprouting::optimizers::tabu::TabuList::set_max_length ( size_t length )

sets the maximum length (tabu_length) of the tabu list

Parameters

[in] length

Definition at line 131 of file tabu_list.cpp.

                                            {
     m_max_length = length;
 }

References m_max_length.

Referenced by vrprouting::optimizers::tabu::Optimize::set_tabu_list_length().

◆ size()

size_t vrprouting::optimizers::tabu::TabuList::size ( ) const

returns the current length (number of moves) in the tabu list

Returns: the number of moves on the tabu list

Definition at line 116 of file tabu_list.cpp.

                             {
     return m_tabu_list.size();
 }

References m_tabu_list.

Referenced by add(), and vrprouting::optimizers::tabu::operator<<().

Friends And Related Function Documentation

◆ operator<<

std::ostream& operator<<	(	std::ostream &	log,
		const TabuList &	list
	)

friend

priting function

Parameters

[in,out]	log	where the print takes place
[in]	list	The tabu list to be printed

Definition at line 140 of file tabu_list.cpp.

                                                     {
     log << "\nTabuList length: " << list.size()
         << "\n *><* *** tabu list start *** ";

     for (const auto &m : list) log << m << ' ';

     log << " *** tabu list end ***\n";
     return log;
 }

Member Data Documentation

◆ m_infeasible_list

std::set<std::string> vrprouting::optimizers::tabu::TabuList::m_infeasible_list

private

the infeasible list

Definition at line 114 of file tabu_list.h.

Referenced by add_infeasible(), and has_infeasible().

◆ m_max_length

size_t vrprouting::optimizers::tabu::TabuList::m_max_length

private

the maximum length (tabu_length) of the tabu list

Definition at line 108 of file tabu_list.h.

Referenced by max_length(), and set_max_length().

◆ m_seen_list

std::set<std::string> vrprouting::optimizers::tabu::TabuList::m_seen_list

private

the seen list

Definition at line 117 of file tabu_list.h.

Referenced by add_seen(), and has_seen().

◆ m_tabu_list

std::deque<Move> vrprouting::optimizers::tabu::TabuList::m_tabu_list

private

the tabu list

Definition at line 111 of file tabu_list.h.

Referenced by add(), begin(), clear(), end(), has(), is_empty(), and size().

The documentation for this class was generated from the following files:
